Access your protocol as described in wiki section Local portal > Protocols.

2023-10-17 Ptarmigans Menu.png

Rock Ptarmigans protocol. Main menu.

LAGOPUS MOTA Preparation and data

2023-10-17 RP prep and data.png

Rock Ptarmigans protocol. Preparation and data.

Lists all sites available to the current profile and allows entering observations, downloading printable maps and seeing results.

  9.1 Preparation and data

LAGOPUS MOTA Add observations

Click on Add observations (see image below) in the site you need to enter data to.

2023-05-09 WBC Add observations.png

Rock Ptarmigans protocol. Add observations.

LAGOPUS MOTA Starting the protocol

Before entering observations, it is required to enter general parameters regarding the protocol. Parameters are protocol specific. Fields marked with an asterisk are mandatory.

See wiki section Web interface > Protocols > Preparation and data > Add observations > Starting the protocol for details.

Click NEXT to start entering observations.

LAGOPUS MOTA Entering observations

To enter observations:

1. Click on gender at the top of the map (number 1 in image below),
2. click on the map to indicate its position (example, number 2 in image below). All positions recorded are indicated with a different point colour. The active one appears in blue and can be reposition by clicking and dragging the point.

2023-10-19 RP Entering obs.png

Rock Ptarmigans protocol. Entering observations.

1. Gender
2. Position

3. Scroll down to modify data or enter details (see image below). Note dot colours match those in the map above.

2023-10-19 RP Enter obs 2.png

Rock Ptarmigans protocol. Entering observations 2.

3. Position: Allows correspondence between entry and the position indicated on the map above.
4. Individuals: Indicate count precision selecting from the expandable menu.
5. Number: Enter number of individuals for each sex and age class on 5b. 5a indicates a total number of individuals for this record, including all sex and age classes at this point, and is entered automatically. Add additional classes if necessary (see point 4 below to learn how).
6. Sex: Select sex from the expandable menu.
7. Age: Select age from the expandable menu.
8. Altitude: Altitude of the observation. It is generated automatically.
9. Delete: Click on the right hand cross to delete the current entry.

4. Choose the position you want to modify / add sex and age classes by clicking on the corresponding square. The active position is indicated in orange.

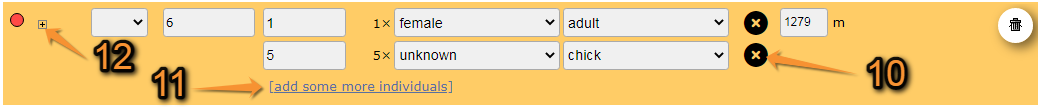

2023-10-19 RP Enter details 1.png

Rock Ptarmigans protocol. Entering details 1.

10. Add some more individuals: Click to open an additional line if you need to enter more individuals at the current position.
11. Delete: Click to delete a sex and age class (a line).
12. Additional details: Click to enter additional details at this position (see image below). Click again to collapse the panel if it is opened.

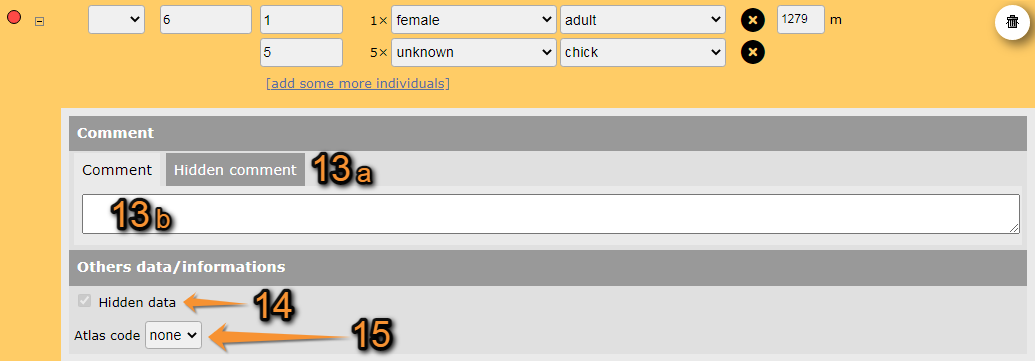

2023-10-19 RP enter details 2.png

Rock Ptarmigans protocol. Entering details 2.

13. Comments: If necessary, enter a comment. Click on the tabs on top depending if you want your comment public or otherwise (13a) and type comment (13b). Note if your comment is hidden it will not be visible to other users, but administrators still will have access to it.
14. Hidden data: Check if you want to hide your data from other users. Note administrations will still see it. It is checked by default...
15. Atlas code: Select from the expandable menu an atlas code if necessary.

LAGOPUS MOTA Ending the protocol

Click on I RECORDED ALL SPECIES OF THE PROGRAME to end the count. A green badge at the top will indicate your data has been saved. If there is some problem with your data, an error message will prevent you from continuing.


2023-05-09 WBC results.png

Rock Ptarmigan protocol. Results.

See some statistics about your surveys results.

Visit wiki section Web interface > Protocols > Preparation and data > Results for details.

LAGOPUS MOTA Display on map

2023-05-09 WBC Display on map.png

Rock Ptarmigans. Display on map.

For the selected site, see the area to survey on a map. To know how to navigate the map, refer to wiki section Web interface > Navigating the map.

Visit wiki section Web interface > Protocols > Preparation and data > Display on map for details.

LAGOPUS MOTA Modify the protocol

2023-05-09 WBC Modify the protocol.png

Rock Ptarmigans protocol. Modify the protocol.

Modify the site to survey.

Visit wiki section Web interface > Protocols > Preparation and data > Modify the protocol for details.

LAGOPUS MOTA Census results

2023-05-09 WBC census results.png

Rock Ptarmigans protocol. Census results.

Click on Census results to see all available years with data for this site (see image Protocol. Selecting year to visualise). Select the one to visualise.

Visit wiki section Web interface > Protocols > Preparation and data > Census results for details.

LAGOPUS MOTA Download map

2023-05-09 WBC Donwload map.png

Rock Ptarmigans protocol. Download map.

Download maps ready to print.

Visit wiki section Web interface > Protocols > Preparation and data > Download map for details.


2023-10-20 RP web Check data.png

Rock Ptarmigans protocol. Check data.

Calendar showing visits to different sites and number of species detected.

Visit wiki section Web interface > Protocols > Preparation and data > Check data for details.


2023-10-20 RP web Map.png

Rock Ptarmigans protocol. Map.

Map and statistics for site.

Visit wiki section Web interface > Protocols > Preparation and data > Map for details.
